1977 Ford / Lincoln / Mercury Shop Manual - 5 Volumes - Licensed OEM Reproduction

SKU: DPRF-27-77SM
1977 Ford / Lincoln / Mercury Shop Manual - 5 Volumes
1977 Ford / Lincoln / Mercury Shop Manual - 5 Volumes
1977 Ford / Lincoln / Mercury Shop Manual - 5 Volumes
1977 Ford / Lincoln / Mercury Shop Manual - 5 Volumes
1977 Ford / Lincoln / Mercury Shop Manual - 5 Volumes
1977 Ford / Lincoln / Mercury Shop Manual - 5 Volumes
MSRP: $130.00
Only $97.95
Free Shipping (US48)
In Stock
Item #: DPRF-27-77SM
-
+
Usually ships the next business day
Why Buy From Us?
  • Free Shipping
  • Veteran Owned
  • Secure Shopping
  • Satisfaction Guaranteed
Item Description

This 1977 Ford / Lincoln / Mercury Shop Manual - 5 Volumes is a high-quality, PRINT reproduction of the shop manual which was written and first published by the experts at the original equipment manufacturer (OEM), Ford Motor Company, for use by their dealership mechanics. It was the tool the professionals depended upon for years, and now it can be yours!

Containing a staggering 2,264 pages of detailed information, this five-volume set has been conveniently packaged into three books. Volume one covers the chassis. Volume two addresses the engine, Volume three is related to electrical. Volume four comprises the body and volume five provides maintenance and lubrications details. This is a beautiful, freshly-printed reproduction version which includes all of the content from the original source. It’s the definitive guide for the service and repair tasks on your ’77 Ford, Lincoln or Mercury.

MODELS COVERED:

  • 1977 Ford Custom 500
  • 1977 Ford Custom 500 Ranch Wagon
  • 1977 Ford Granada
  • 1977 Ford Granada Ghia
  • 1977 Ford LTD
  • 1977 Ford LTD Country Squire
  • 1977 Ford LTD II
  • 1977 Ford LTD II Brougham
  • 1977 Ford LTD II S
  • 1977 Ford LTD II Squire
  • 1977 Ford LTD Landau
  • 1977 Ford Maverick
  • 1977 Ford Maverick Grabber
  • 1977 Ford Mustang II
  • 1977 Ford Mustang II Ghia
  • 1977 Ford Mustang II Mach 1
  • 1977 Ford Pinto
  • 1977 Ford Pinto Pony
  • 1977 Ford Pinto Squire
  • 1977 Ford Thunderbird
  • 1977 Lincoln Continental
  • 1977 Lincoln Mark V
  • 1977 Mercury Bobcat
  • 1977 Mercury Bobcat Runabout
  • 1977 Mercury Bobcat Villager
  • 1977 Mercury Comet
  • 1977 Mercury Cougar
  • 1977 Mercury Cougar Brougham
  • 1977 Mercury Cougar Villager
  • 1977 Mercury Cougar XR-7
  • 1977 Mercury Grand Marquis
  • 1977 Mercury Marquis
  • 1977 Mercury Marquis Brougham
  • 1977 Mercury Monarch
  • 1977 Mercury Monarch Ghia

You’ll quickly find that these hefty manuals cover these classic vehicles from front to back. Whether you’re looking to perform a minor tune-up, or a major tear-down, you’ll find the factory specifications and instructions you’ll need to get the jobs done right. Please take a moment to open the Table of Contents tab on this webpage in order to see just how well these vintage Fords are covered. While you’re scrolling, move down to the sample pages and you’ll get a taste of the huge variety and number of visual aids which accompany the well-written, step-by-step text instructions.

Did you know that some ’77 Ford and Mercury models were equipped with a manual fill load leveler system – air sleeve rear shock absorbers? Well, you would if you owned this helpful service manual set and turned to 14-45-1. It first provides a handy description along with some great visual tools. “The manual fill load leveler system (Fig. 2) is designed to level the rear of the vehicle under various load conditions. The rear shock absorbers can be inflated or deflated, as required, at the fill valve, located under the hood on the left fender apron, to bring the vehicle back to its normal design ride height. The system consists of an air valve, a flexible nylon air line assembly and two air sleeve rear shock absorbers (Fig. 1). The air fill valve is of the conventional tire valve type. The flexible nylon air line assembly uses ¼” diameter tubing with brass fittings and rubber O-rings.” Following the description, you get directions for removal and installation of the components along with testing procedures.

Ford offered something for everyone with its lineup in 1977. Whether you wanted a big car, or a small one, choices abounded. Lincoln and Mercury also brought an array of luxury and value to the table. In 1976, Farrah Fawcett helped to make the Mustang II cool, while cruising around on the popular Charlie’s Angels television show. The downsized pony-car continued the sleek styling in ’77 with new appearance packages, T-tops and more. Also, in 1977, the Maverick said goodbye after a successful run. Whichever vintage Ford product you’re ready to restore, repair or rebuild, this is the guide to make sure the projects are completed correctly and efficiently.

One of the top television shows in 1977 was Happy Days. With the help from this 1977 Ford Lincoln Mercury shop manual set, “happy days” are just what you’ll have with your beloved classic blue oval. Order yours today!

This factory-written shop manual is perfect for service, repairs, restoration and rebuild projects. Clear illustrations and photos show exploded views, as well as component details, plus specifications on engine data, engine torque, carburetion and more.


Subject: 1977 Ford / Lincoln / Mercury Shop Manual - 5 Volumes - Includes Detailed Procedures and Instructions. | OEM Part Number: 365-126-77A,B,C,D,E

Specifications
  • Publisher: Ford Motor Company
  • Pages: 2264 - Hundreds of b&w illustrations
  • Binding: Paperback - 8.5 x 11 inches
  • Years: 1977
Table of Contents

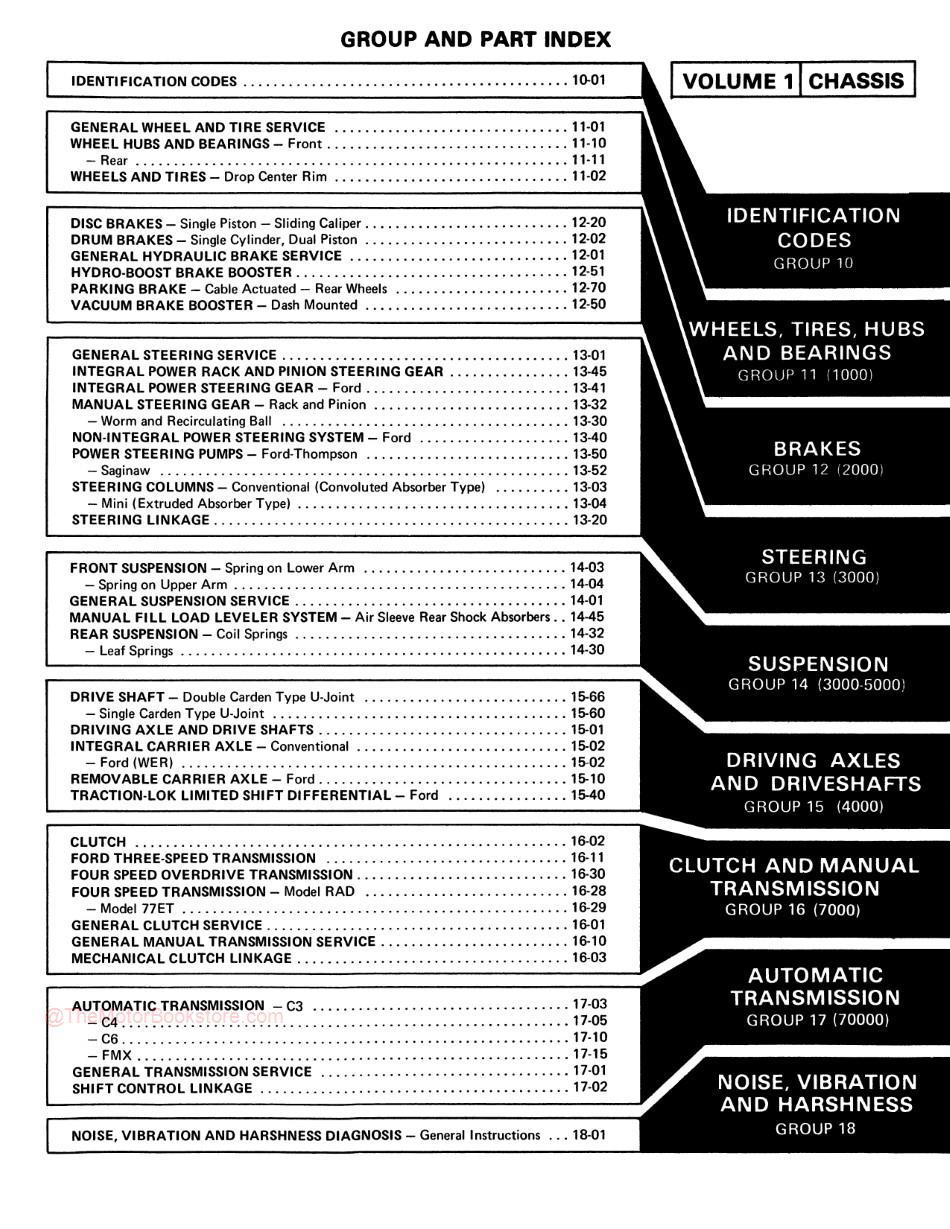

1977 Ford / Lincoln / Mercury Shop Manual - Table of Contents Volume 1
1977 Ford / Lincoln / Mercury Shop Manual - Table of Contents Volume 1
1977 Ford / Lincoln / Mercury Shop Manual - Table of Contents Volume 2
1977 Ford / Lincoln / Mercury Shop Manual - Table of Contents Volume 2

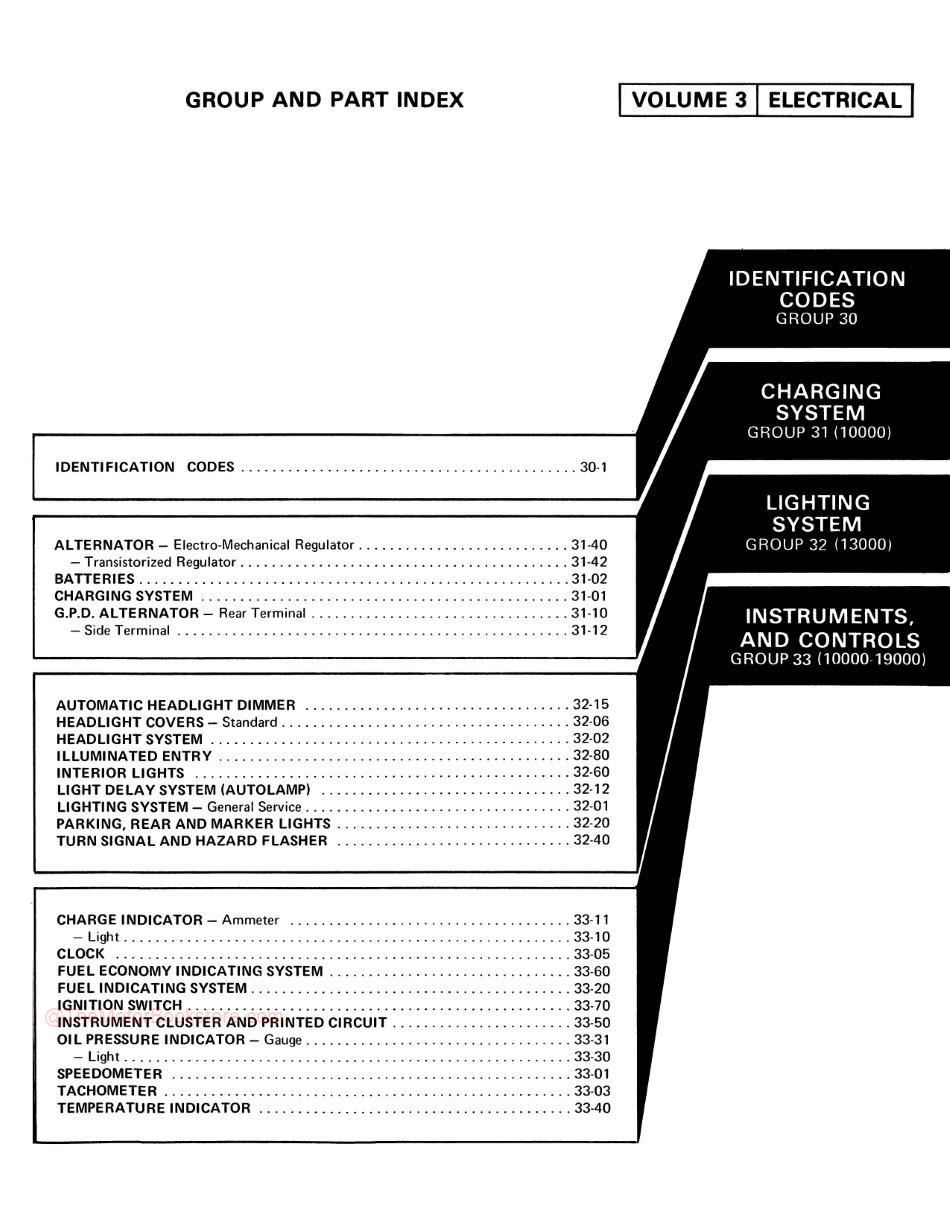

1977 Ford / Lincoln / Mercury Shop Manual - Table of Contents Volume 3
1977 Ford / Lincoln / Mercury Shop Manual - Table of Contents Volume 3

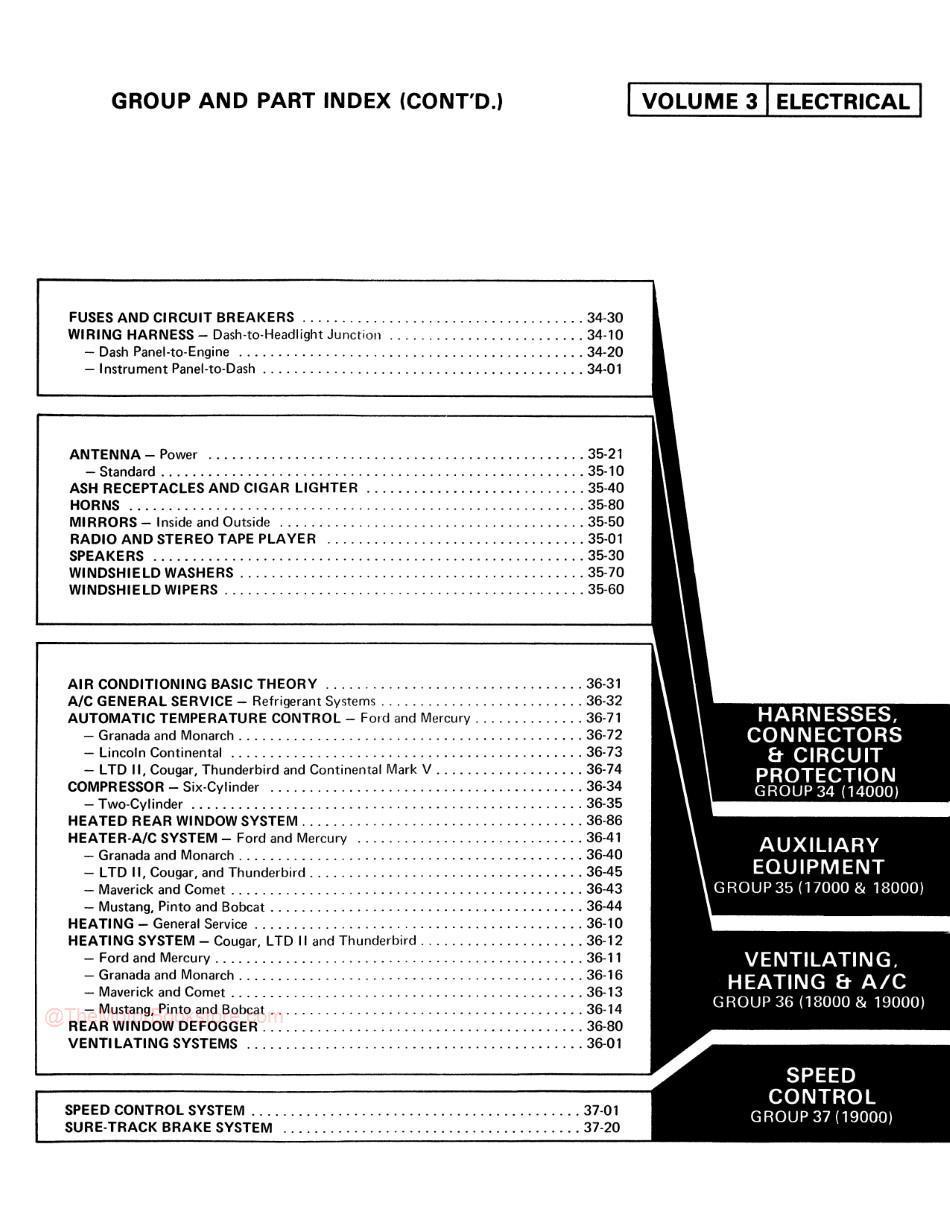

1977 Ford / Lincoln / Mercury Shop Manual - Table of Contents Volume 3 Cont.
1977 Ford / Lincoln / Mercury Shop Manual - Table of Contents Volume 3 Cont.

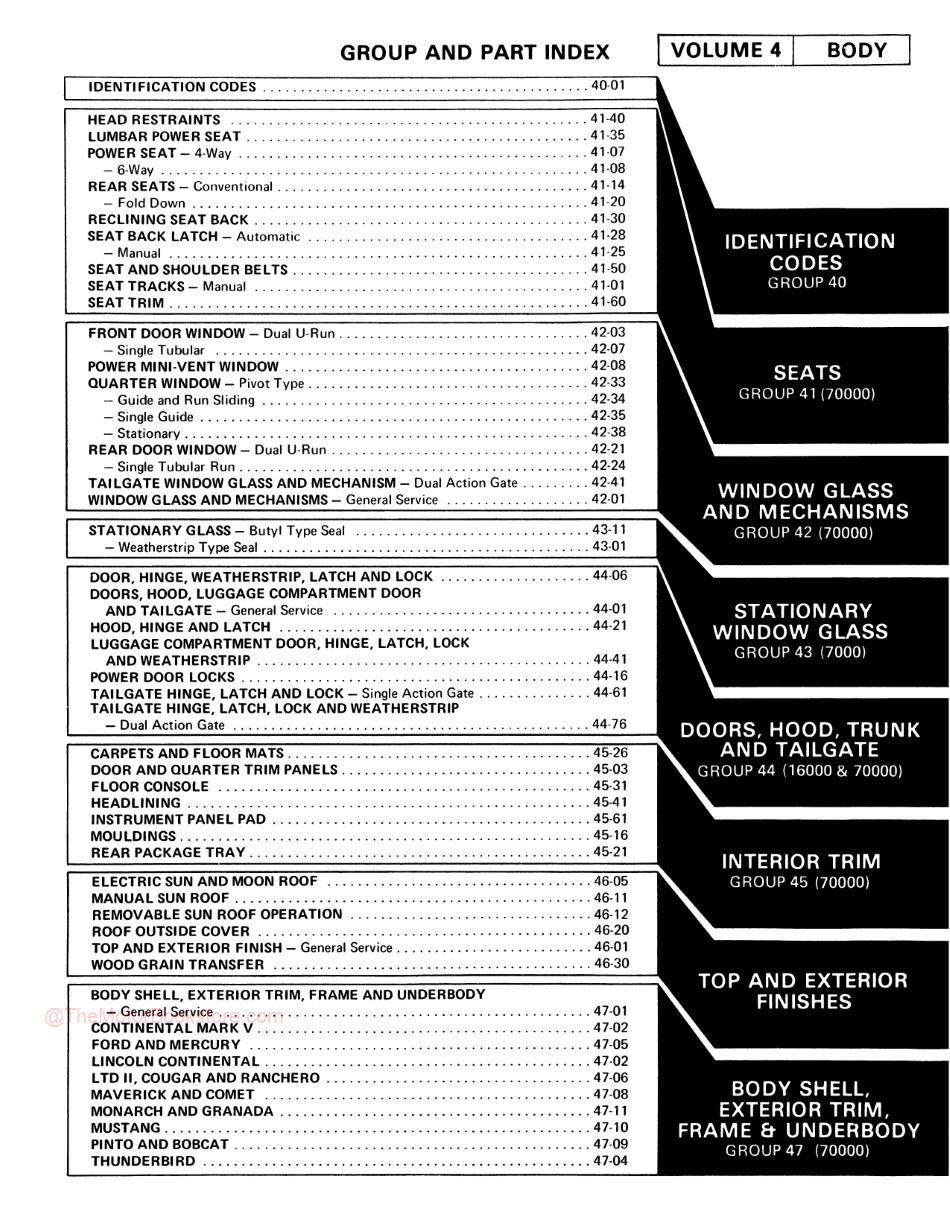

1977 Ford / Lincoln / Mercury Shop Manual - Table of Contents Volume 4
1977 Ford / Lincoln / Mercury Shop Manual - Table of Contents Volume 4

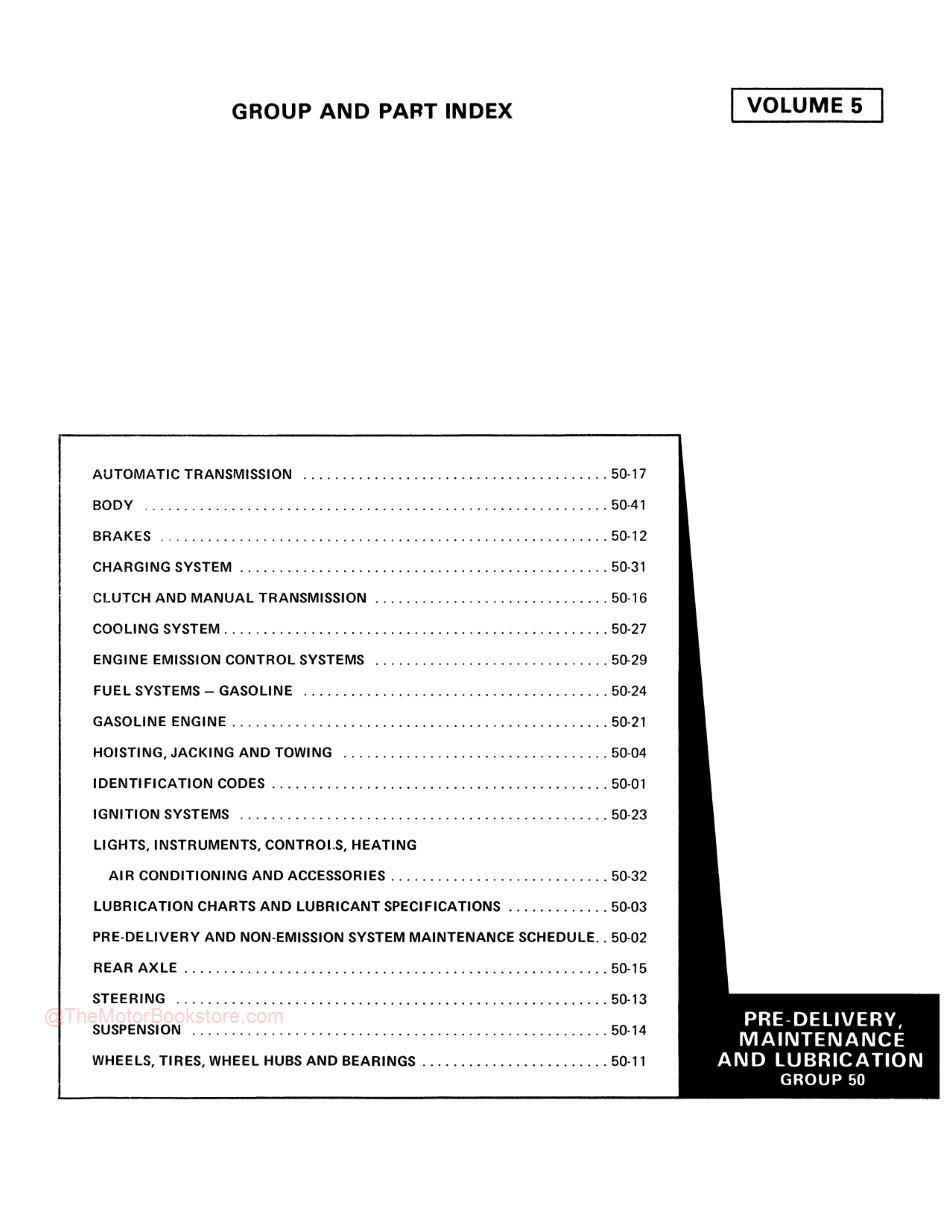

1977 Ford / Lincoln / Mercury Shop Manual - Table of Contents Volume 5
1977 Ford / Lincoln / Mercury Shop Manual - Table of Contents Volume 5
  • VOLUME ONE
    • Identification Codes
    • Wheels, Tires, Wheel Hubs and Bearings
    • Brakes
    • Steering
    • Suspension
    • Driving Axles and Driveshafts
    • Clutch and Manual Transmission
    • Automatic Transmission
    • Noise, Vibration and Harshness
  • VOLUME TWO
    • Identification Codes
    • Gasoline Engines
    • Ignition System
    • Fuel System
    • Exhaust System
    • Cooling System
    • Starting System
    • Emission Controls
  • VOLUME THREE
    • Identification Codes
    • Charging System
    • Lighting System
    • Instruments and Controls
    • Harness Connectors & Circuit Protection
    • Auxiliary Equipment
    • Ventilating, Heating and A/C
    • Speed Control
  • VOLUME FOUR
    • Identification Codes
    • Seats
    • Window Glass and Mechanisms
    • Stationary Window Glass
    • Doors, Hood, Trunk and Tailgate
    • Interior Trim
    • Top and Exterior Finishes
    • Body Shell, Exterior Trim, Frame & Underbody
  • VOLUME FIVE
    • Pre-Delivery, Maintenance and Lubrication
Sample Page:

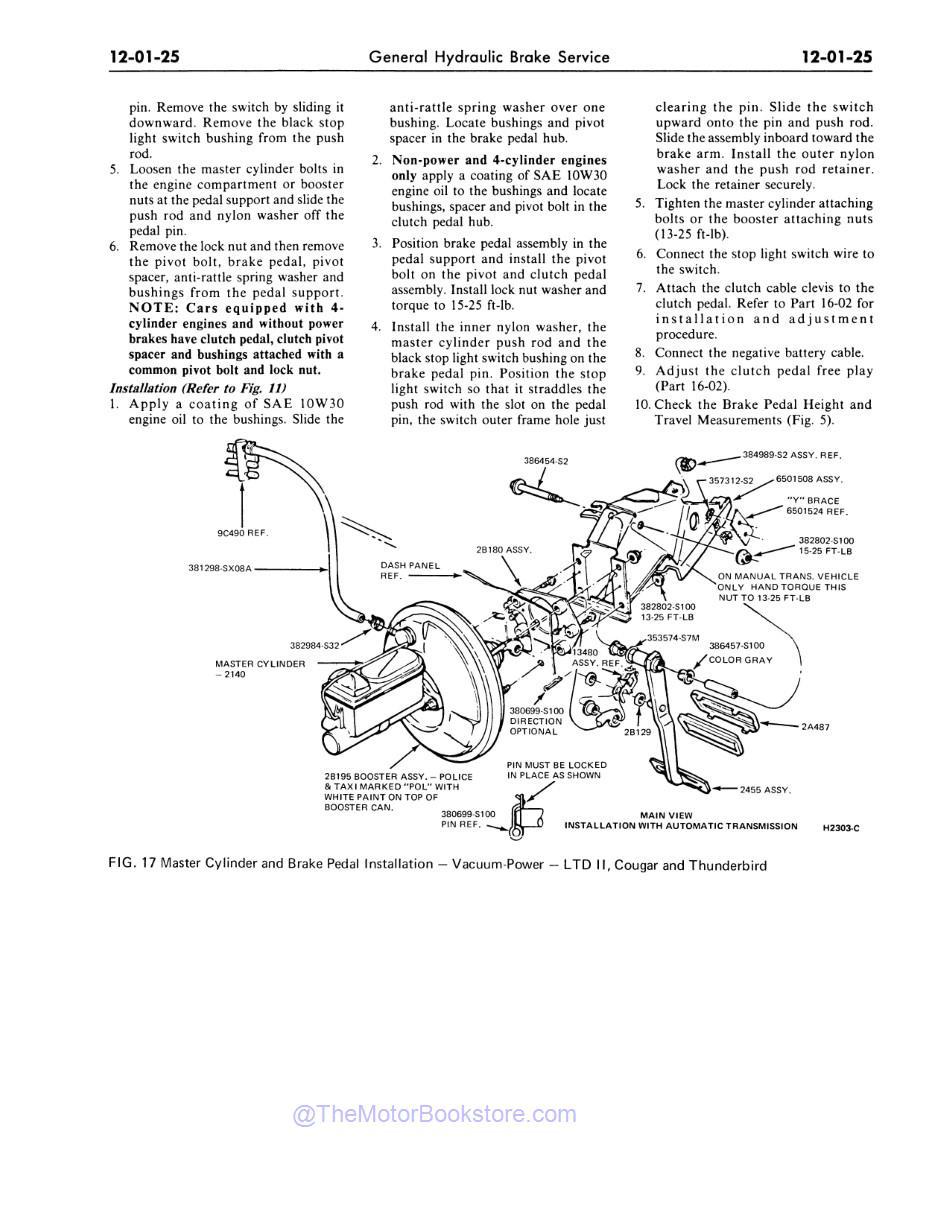

Below:1977 Ford / Lincoln / Mercury Shop Manual Sample Page - Brake Pedal Install
1977 Ford / Lincoln / Mercury Shop Manual Sample Page - Brake Pedal Install Sample Page:
Below:1977 Ford / Lincoln / Mercury Shop Manual Sample Page - 460 CID Crankshaft
1977 Ford / Lincoln / Mercury Shop Manual Sample Page - 460 CID Crankshaft Sample Page:

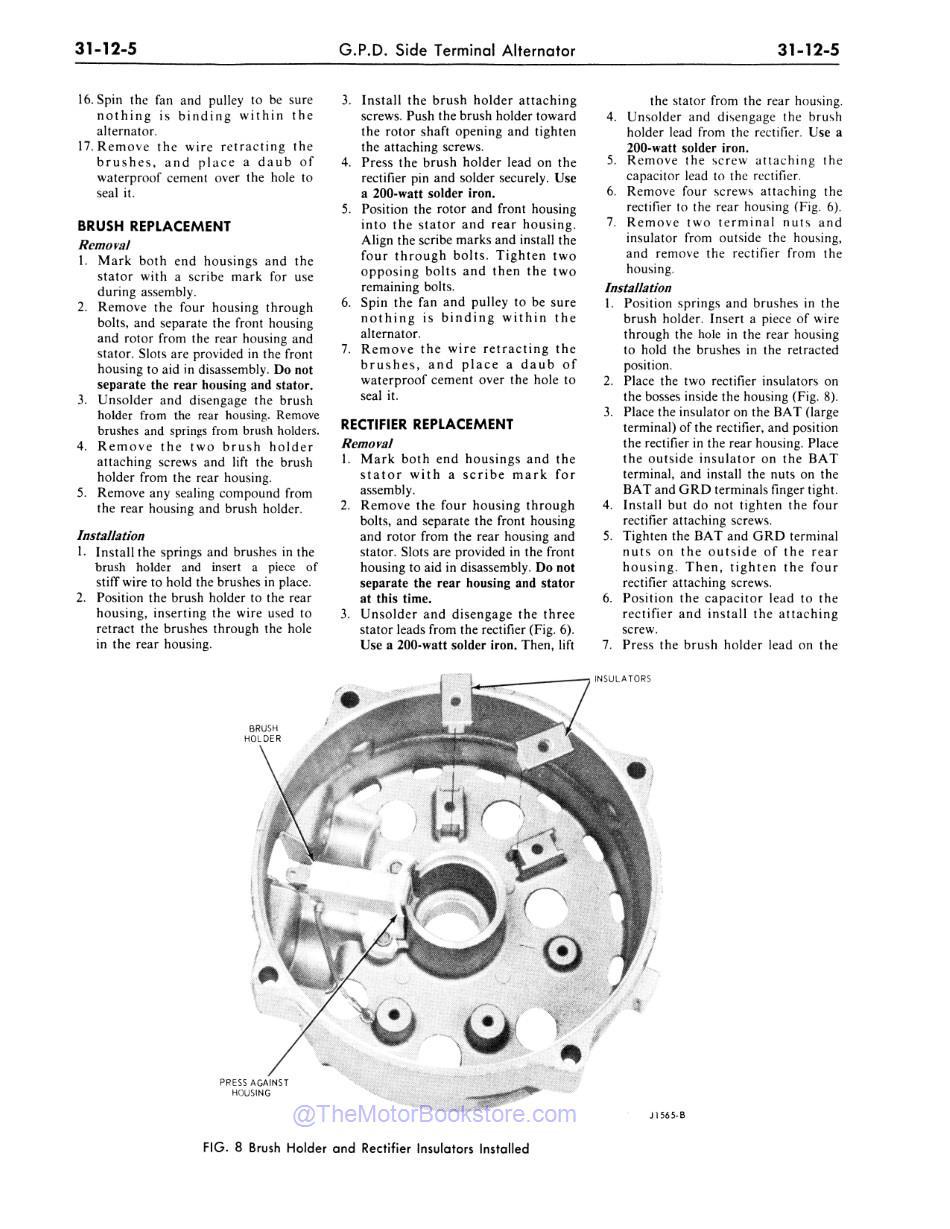

Below:1977 Ford / Lincoln / Mercury Shop Manual Sample Page - Brush / Rectifier Replacement
1977 Ford / Lincoln / Mercury Shop Manual Sample Page - Brush / Rectifier Replacement Sample Page:
Below:1977 Ford / Lincoln / Mercury Shop Manual Sample Page - Seat Back Assembly
1977 Ford / Lincoln / Mercury Shop Manual Sample Page - Seat Back Assembly
