This 1984 - 1988 Jeep Cherokee / Wagoneer Bodywork Shop Manual - M.R. 247 is a high-quality, PRINT reproduction of the shop manual which was written and first published by the experts at the original equipment manufacturer (OEM), American Motors Company, for use by their dealership mechanics. Faithfully used by the industry professionals for years, now, this marvelous resource can be yours!
- 1984 - 1988 Jeep Cherokee
- 1985 - 1988 Jeep Cherokee Chief
- 1985 - 1988 Jeep Cherokee Laredo
- 1988 Jeep Cherokee Limited
- 1985 - 1988 Jeep Cherokee Pioneer
- 1984 - 1987 Jeep Wagoneer
- 1984 - 1988 Jeep Wagoneer Limited

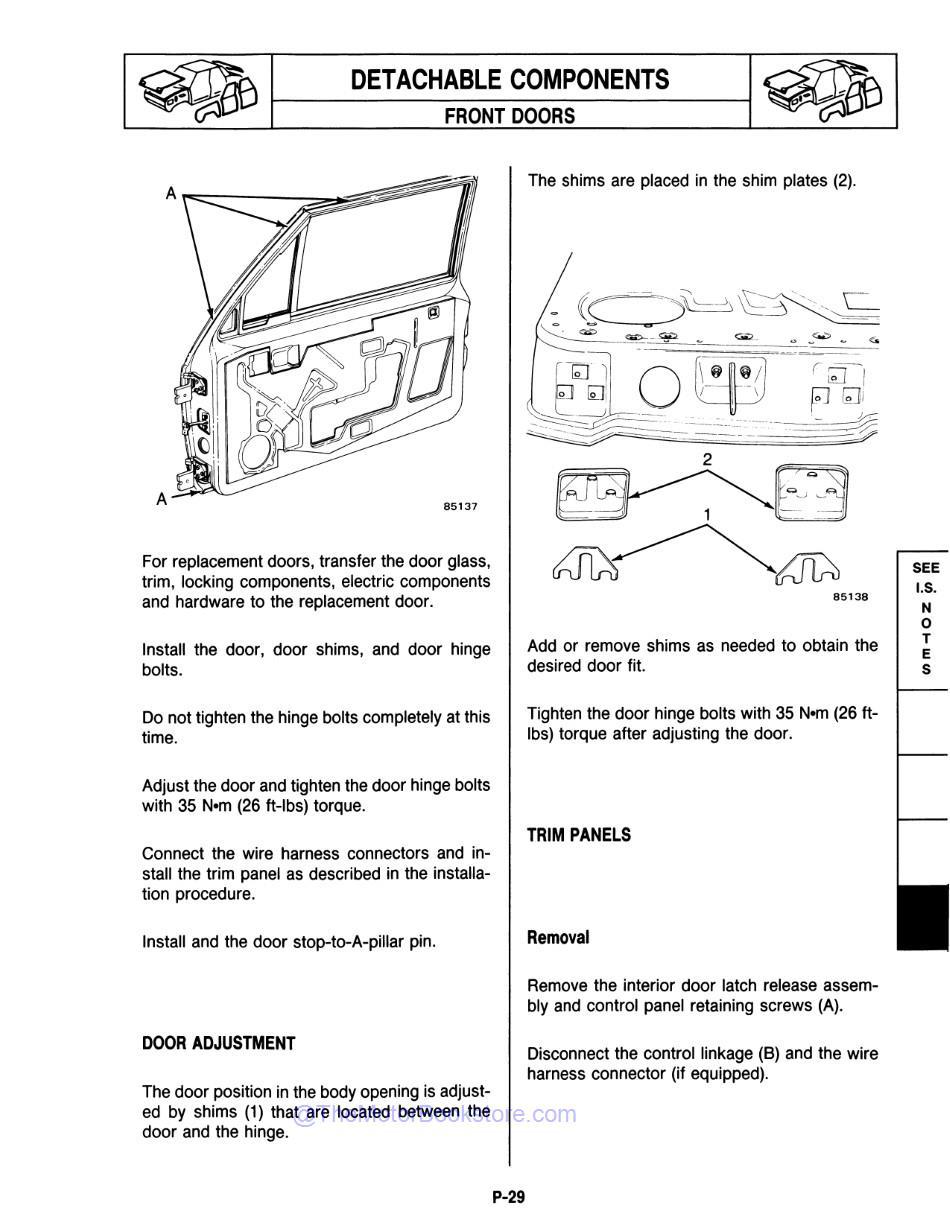

This handy 300+ page workshop manual (M.R.247) covers the body work for Wagoneer and Cherokee models. In addition to general body information, you’ll find procedures related to: detachable components, sealing, welded components and paint and trim. Filled with factory specifications, dimensions and instructions, you’ll be pleased to discover a huge number and variety of visual aids to assist you throughout your projects. Please take a moment to check out the Table of Contents tab on this webpage to see how thoroughly these tremendously popular Jeep models have been covered. While you’re scrolling, be sure to also take a look at the sample page below in order to see the fine pairing of illustrations with the well-written text.
Among other things, with this service manual, you’ll be able to decode your VIN, look up powertrain combinations for both 4WD and 2WD and confirm fluid grades and capacities. This is the definitive guide to bodywork on these classic Jeeps.
Did you know that corrosion protective material can be injected inside hollow sections of the vehicle via strategically located 8-mm (0.31-in) diameter holes that are punched during the manufacturing process? Well, you would know that and whole lot more if you owned this manual and flipped to the paint and trim (corrosion protection) section T-26. It would also would tell you that the holes are plugged with plastic plugs. There’s even an additional note to advise you that, if necessary, additional holes can be drilled for the purpose of injecting corrosion protective material.
NOTE: This is the BODY manual. For information regarding chassis service, please see our: 1984 – 1988 Jeep Cherokee / Wagoneer Shop Manual – M.R.244, which can be found by clicking here…1984 - 1988 Jeep Cherokee / Wagoneer Shop Manual - M.R. 244.
Retaining all of the original source material, this freshly-printed and packaged version is clean and new, and will make an excellent addition to your automotive library. Pick up a copy, and while you’re at it, order a copy of our shop manual, too. Then, you’ll be all set to tackle the projects for your rugged runabout.
This factory-written shop manual is perfect for service, repairs, restoration and rebuild projects. Clear illustrations and photos show exploded views, as well as component details and more.
Subject: 1984 - 1988 Jeep Cherokee / Wagoneer Bodywork Shop Manual - M.R. 247 - Includes Detailed Procedures and Instructions.
| OEM Part Number: 8980-010-100
