Item Description

1972 Corvette Factory Assembly Manual is an absolute gem for the restorer or anyone who loves working with cars. General Motors Division originally published this manual and it is a licensed factory reprint, with all the actual Gm part numbers.

The 1972 Corvette was filled with options. According to VETTEFACTS this was the last year model to have chrome front bumpers, side bright “egg crate” grills and a removable rear window. If you are a corvette lover, check out VETTEFACTS.com. Only 27,004 models were built with a base price of $5533.00 and the option of two strong V-8’s, the:

  • 350 cubic inch
  • 454 cubic inch

This 1972 Corvette Factory Assembly Manual is filled with easy to read diagrams written by Chevrolet Engineers for the assembly line workers, but are a blessing for the restorer to have access to.

Without a doubt, this easy to navigate manual is very straight forward, as well as being clearly visible on every one of the 426 page book, that even the beginning restorer could fully understand.

The manual covers everything from basic stapling instructions, to bonding instructions, cowl and dash panel piercing, etc.

Obviously the 1972 Corvette Factory Assembly Manual not only gives you everything you need, both diagram wise and part numbers, it helps the restorer on one of the most gorgeous and popular Corvettes out there!!!

Refer to the Specifications Tab to view another sample page of this manual.

Specifications
  • Publisher: Chevrolet Motor Division
  • Pages: 426 - Hundreds of b&w illustrations
  • Binding: Paperback - 8.5 x 11 inches
  • Years: 1972

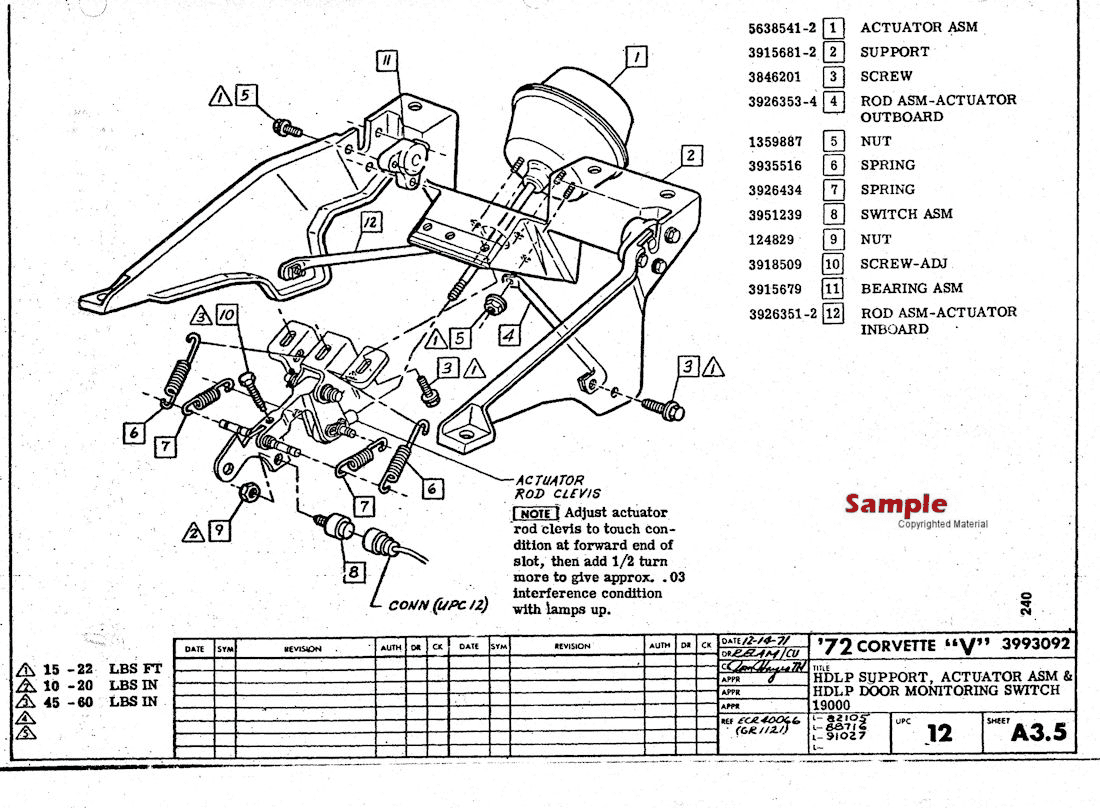

  • Below: 1972 Corvette Factory Assembly Manual Sample Page - HDLP Support, Actuator ASM & HDLP Door Monitoring Switch. Copyright General Motors Corporation. 1972 Corvette Factory Assembly Manual, Sample Page - HDLP Support, Actuator ASM & HDLP Door Monitoring Switch

Table of Contents
TABLE OF CONTENTS
  • General Information
  • UPC 1 Body
  • UPC 2 Frame
  • UPC 3 Front Suspension
  • UPC 4 Rear Suspension
  • UPC 5 Brakes
  • UPC 6 Engines
  • UPC 7 Transmissions
  • UPC 8 Fuel Line Exhaust
  • UPC 9 Steering
  • UPC 10 Tires and Wheels
  • UPC 11 Chassis Sheet Metal
  • UPC 12 Electrical
  • UPC 13 Radiator and Radiator Grille
  • UPC 14 Bumpers & Miscellaneous
