1975 Cadillac Fuel Injection Supplement to 1975 Shop Manual

This 1975 Cadillac Fuel Injection Supplement to 1975 Shop Manual is a high-quality, PRINT reproduction of the shop manual which was written and first published by the experts at the original equipment manufacturer (OEM), Cadillac Motor Car Division, for use by their dealership mechanics..

MODELS COVERED:

• 1975 Cadillac Calais
• 1975 Cadillac Commercial Chassis
• 1975 Cadillac DeVille
• 1975 Cadillac DeVille Cabriolet
• 1975 Cadillac DeVille d'Elegance
• 1975 Cadillac Eldorado
• 1975 Cadillac Fleetwood 60 Special Brougham
• 1975 Cadillac Fleetwood 75

NOTE: This manual is a fuel injection SUPPLEMENT. It covers the fuel injection system and related components. For additional service information for these cars, you'll want to check out our: 1975 Cadillac Shop Manual Supplement, which can be found by clicking here...1975 Cadillac Shop Manual Supplement to 1974 Shop Manual. For information regarding service and repair for the BODY, please link to our: 1975 Fisher Body Service Manual, which can be found by clicking here...1975 Fisher Body Service Manual.

While fuel injection is completely the normal for gas engines now, back in 1975 it was still quite a rare option, if offered on a vehicle at all! Beginning in February of 1975, some Cadillacs were equipped with option KF3, which is an electronic fuel injection (EFI) system. Talk about going carb-free! These cars were way ahead of that trend. This helpful supplement manual provides information pertaining to operations, diagnosis and servicing the EFI system. Related systems are also present. You'll find information regarding the following: general description, system description, diagnosis, service information and general information.

You'll quickly discover that the well-written, step-by-step instructions have been handily paired with a huge number and variety of visual aids in order to take you through the projects thoroughly from start to finish. It will give you the knowledge to give you the confidence to do the jobs yourself.

Did you know the '75 Caddy EFI system uses an in-tank boost pump? Well, you would if you owned this manual. It also tells you that two electric fuel pumps are used with the EFI system. Located inside the fuel tank (and an integral part of the fuel gage tank unit), the in-tank pump is used to supply fuel to the chassis-mounted pump and to prevent vapor lock on the suction side of the system. It would also tell you that the chassis-mounted and in-tank pumps are electrically connected in parallel to the ECU and are protected by a 10 amp. In-line fuse located in the harness near the ECU. They even provide excellent visual aids to show you how everything looks and works together.

Please note that this freshly-printed and packaged service manual retains all of the content from the original source. It has all of the factory specifications and instructions from the professionals, but is clean and new. If you're looking to get to work on your '75 Caddy EFI, this is the ultimate guide. It will be a great addition to your automotive library. Order yours today!

This factory written shop manual is perfect for service, repairs, restoration, and rebuild projects. Clear illustrations and photos show exploded views and more.

Sample Page:

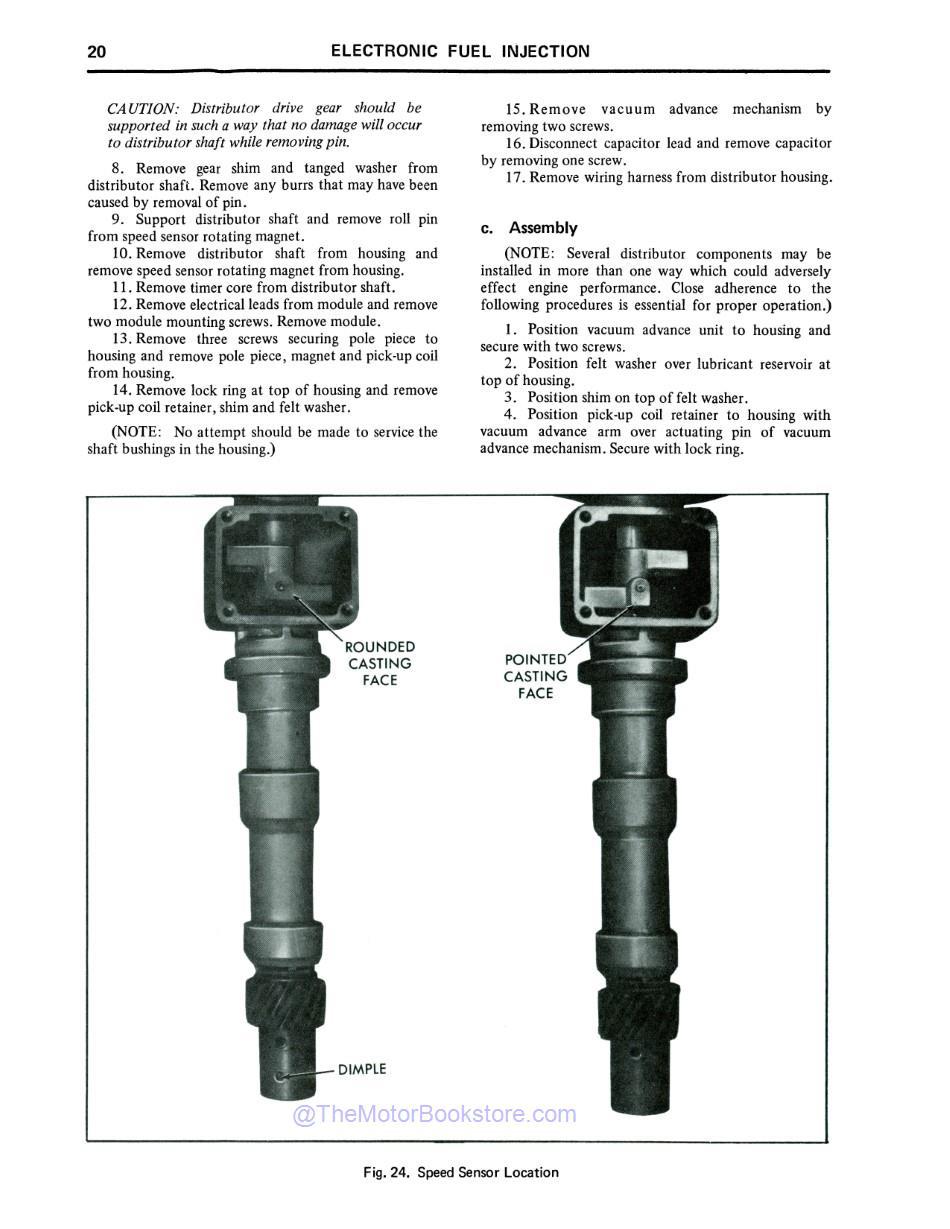

Below:1975 Cadillac Fuel Injection Supplement Sample Page - Speed Sensor Assembly
