Description

2002 Ford F-Super Duty 250, 350, 450, 550, & Excursion Wiring Diagrams

This 2002 Ford F-Super Duty 250, 350, 450, 550, & Excursion Wiring Diagrams is a licensed, high-quality, PRINT reproduction of the outstanding manual that was created by the experts at the original equipment manufacturer (OEM), Ford Motor Company for use by their dealership mechanics. Here is it beautifully recreated by publisher Detroit Iron® and retains ALL of the OEM content. This handy manual is essential for accurate electrical diagnostics, restoration and repairs.

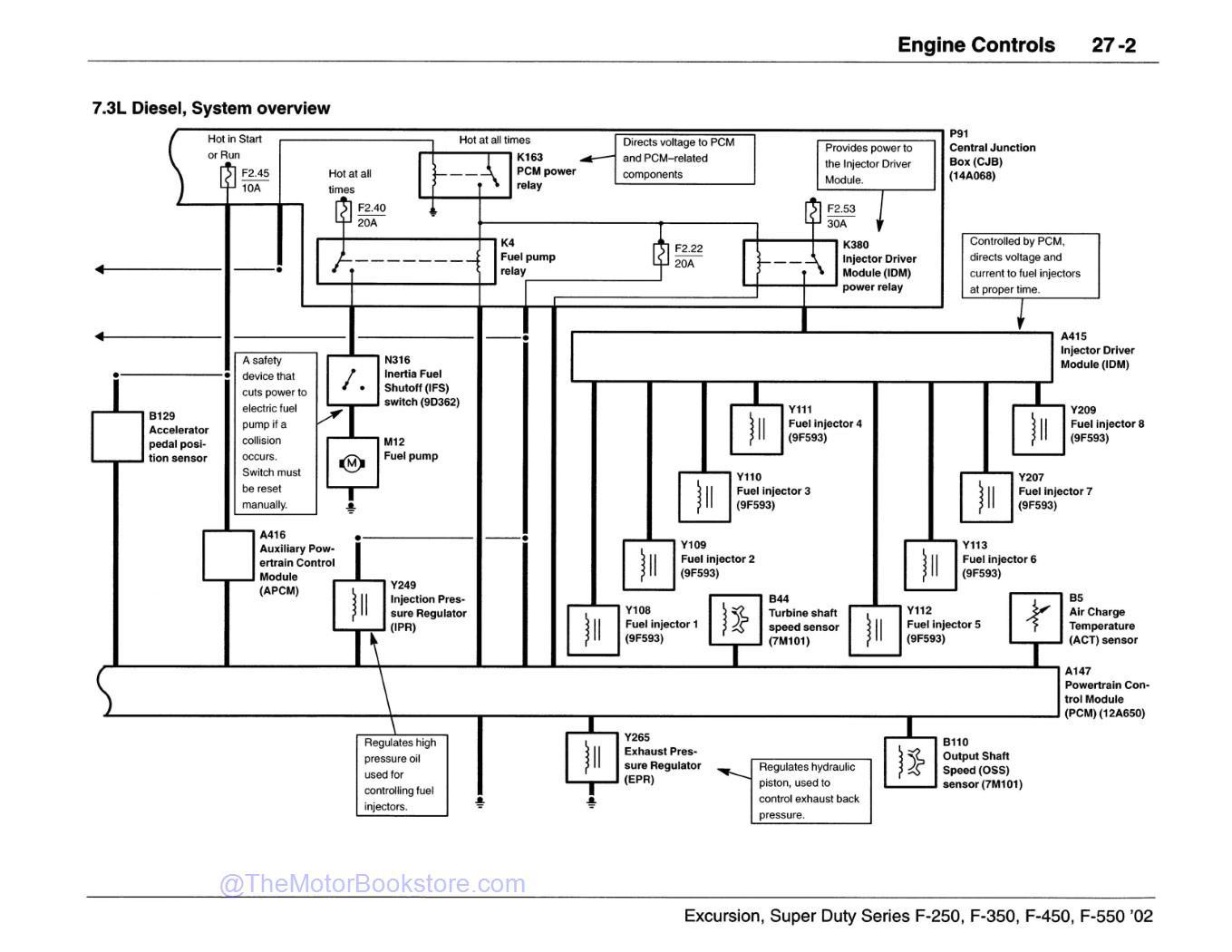

Professionally reproduced in landscape format (11" x 8.5") and presented in sharp black and white, this perfect-bound manual includes 530 pages of comprehensive electrical circuit diagrams shown in a clear and simple fashion to make your troubleshooting tasks easier. Schematic pages contain Component Location references to full-view illustrations and component descriptions that describe the system function of the components. Components that work together are shown together.

NOTE: This is a specialized electrical manual. For the MAIN service manual, please see the 2002 Ford F-Super Duty 250, 350, 450, 550 & Excursion Workshop Manual.

Built for real-world use, this guide features:

OEM-authored content - trusted factory procedures
Comprehensive system coverage - mechanical, electrical & more
Clear diagrams and specs - step-by-step accuracy
Thick, high-quality paper / Durable print format - ideal for garage or shop use

This factory-written 2002 Ford wiring diagram is the superior resource for restorers, technicians and DIYers alike. You'll discover this manual is the definitive guide to use when diagnosing and repairing electrical systems in your classic Ford vehicle.

Vehicle Applications:

2002 Ford Excursion Limited Truck
2002 Ford Excursion XLT Truck
2002 Ford F-250 Super Duty Lariat Truck
2002 Ford F-250 Super Duty XL Truck
2002 Ford F-250 Super Duty XLT Truck
2002 Ford F-350 Super Duty Lariat Truck
2002 Ford F-350 Super Duty XL Truck
2002 Ford F-350 Super Duty XLT Truck
2002 Ford F-450 Super Duty Lariat Medium/Heavy Truck
2002 Ford F-450 Super Duty XL Medium/Heavy Truck
2002 Ford F-450 Super Duty XLT Medium/Heavy Truck
2002 Ford F-550 Super Duty Lariat Medium/Heavy Truck
2002 Ford F-550 Super Duty XL Medium/Heavy Truck
2002 Ford F-550 Super Duty XLT Medium/Heavy Truck

Subject: 2002 Ford F-Super Duty 250, 350, 450, 550, & Excursion Wiring Diagrams - Includes Detailed Procedures and Instructions. | ISBN-10: 1791422608 | ISBN-13: 9781791422608 | OEM Part Number: FCS-12254-02

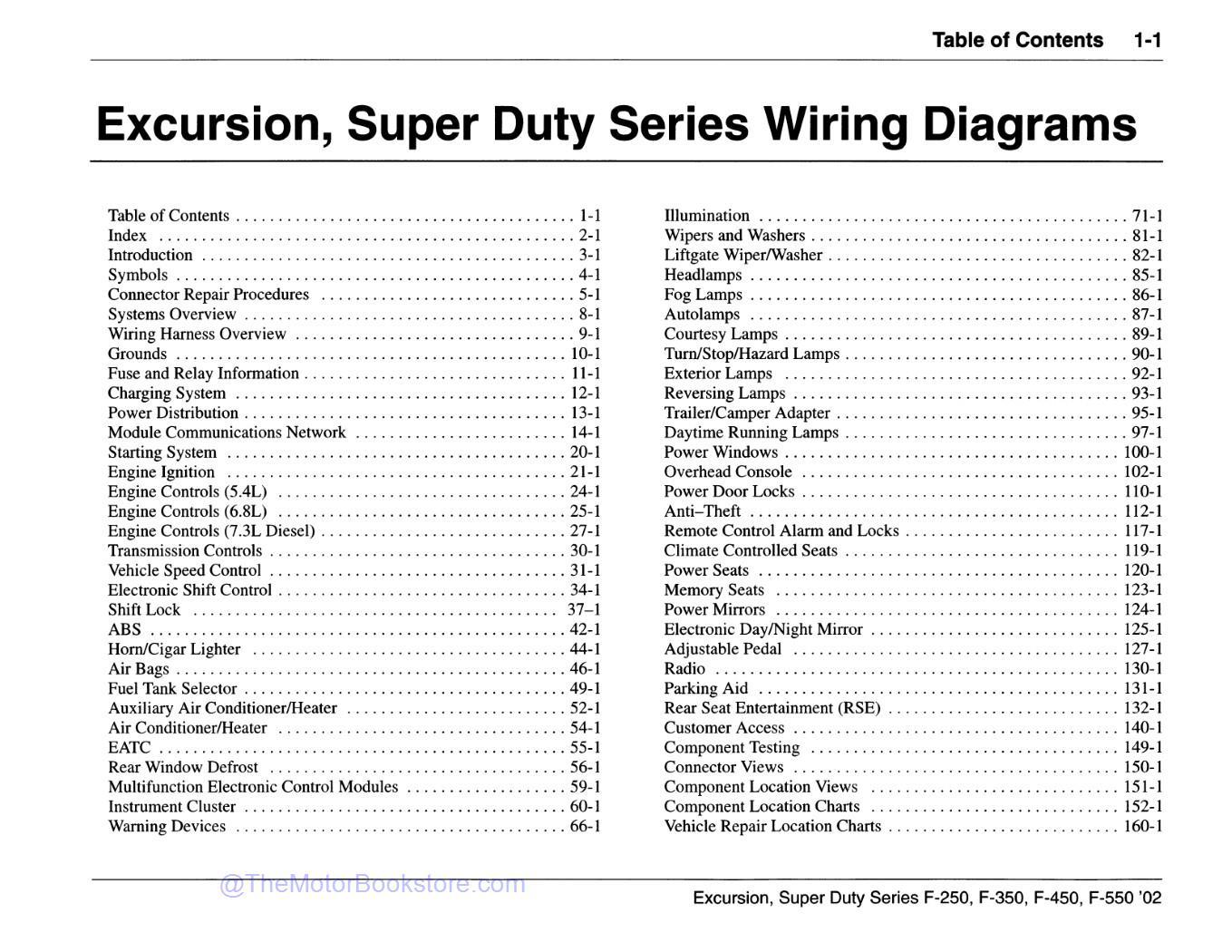

2002 Ford F-Super Duty 250, 350, 450, 550, & Excursion Wiring Diagrams - Table of Contents
