This 1987 Camaro Electrical Diagnosis Shop Manual Supplement is a high-quality, licensed PRINT reproduction of the shop manual written and first published by the experts at the original equipment manufacturer (OEM), Chevrolet Motor Division, for use by their dealership mechanics. When it's time for troubleshooting the electrical system in your classic Camaro, this professional guide is THE tool to use.

NOTE: This is a specialized manual. It's a supplement designed exclusively to diagnose electrical issues. For the main SERVICE manual, please see our: 1987 Chevrolet Camaro Shop Manual (Chassis & Body), which can be found by clicking here...1987 Chevy Camaro Shop Manual. We recommend owning both.

MODELS COVERED:

• 1987 Chevrolet Camaro Iroc-Z
• 1987 Chevrolet Camaro LT
• 1987 Chevrolet Camaro Sport
• 1987 Chevrolet Camaro Z28

This useful handbook contains 350 pages of detailed information for tackling electrical projects of all sizes. It delivers valuable diagnostic information including: electrical schematics, component location lists, harness connector faces, circuit operation descriptions, troubleshooting tips, system check procedures, system diagnoses and harness routing views.

In this comprehensive guide there's much more than text directions. Don't just read about it here, please scroll down to see three exceedingly different sample pages demonstrating some of the wide variety of excellent visual aids which complement the well-written instructions. The first sample shows one of the beautiful circuit-style illustrations. The second sample page contains a combination of troubleshooting hints and tables. The third sample page exhibits different styles of illustrations, helping you to locate key components in various areas of the vehicle. This beautiful array of tools delivers unrivaled clarity, so you can perform the jobs effectively and efficiently.

In addition to the 350 cubic inch (5.7 L) L98 engine joyously becoming a regular option, the other big 20th anniversary Camaro news was the return of the convertible (absent since 1969!). Whatever's under your hood, and whether you have a fixed roof or not, your F-body is loaded with electronics. This handy tool will help you get and keep them right.

Never guess when working with electricity (trust us...your Camaro doesn't need another "shock absorber"). Be sure you have the factory-correct information before taking on those "current" tasks. With this beautifully reprinted shop manual, you'll have your vintage bowtie performing in top condition in no time. Remember, in this area, failures can come as a great shock.

This factory-written shop manual is perfect for service, repairs, restoration and rebuild projects. Clear illustrations and diagrams show exploded views, as well as component details, plus specifications, engine repair details, fuel systems and more.

Sample Page:

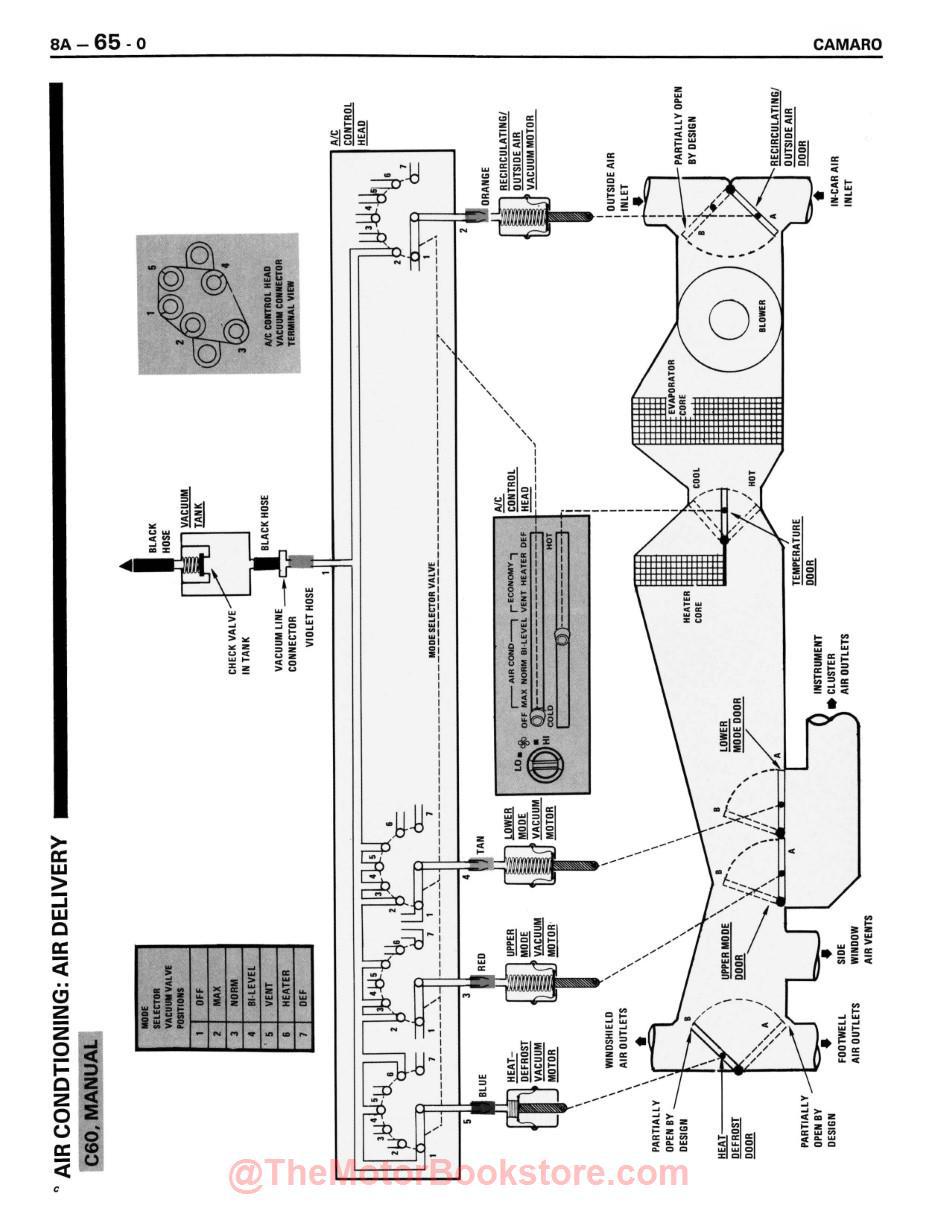

Below:1987 Camaro Electrical Diagnosis Shop Manual Supplement - Sample Page - Air Conditioning: Air Delivery

Sample Page:

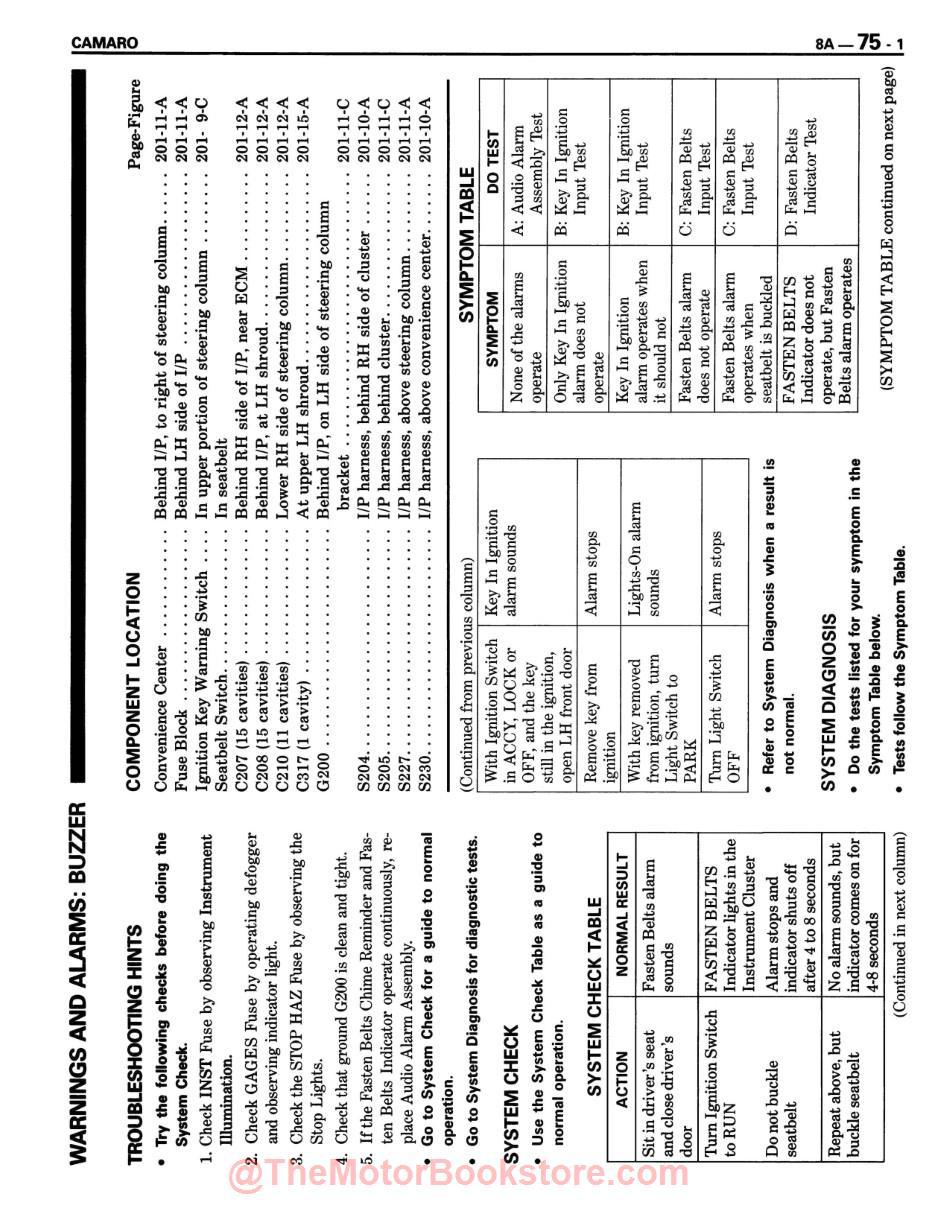

Below:1987 Camaro Electrical Diagnosis Shop Manual Supplement - Sample Page - Warning and Alarms: Buzzer

Sample Page:
Below:1987 Camaro Electrical Diagnosis Shop Manual Supplement - Sample Page - Component Location Views
