1967-1972 Chevrolet, GMC Truck Factory Assembly Manual

SKU: DPRGM-82-67TASM

Customer Rating: 4 Review(s) | Write a Review

1967-1972 Chevrolet, GMC Truck Factory Assembly Manual
1967-1972 Chevrolet, GMC Truck Factory Assembly Manual
1967-1972 Chevrolet, GMC Truck Factory Assembly Manual
1967-1972 Chevrolet, GMC Truck Factory Assembly Manual
MSRP: $49.95
Only $44.95
Free Shipping (US48)
In Stock
Item #: DPRGM-82-67TASM
-
+
Usually ships the next business day
Why Buy From Us?
  • Free Shipping
  • Veteran Owned
  • Secure Shopping
  • Satisfaction Guaranteed
Item Description

This licensed 1967-1972 Chevrolet, GMC Truck Factory Assembly Manual provides 1,064 pages of the actual truck assembly engineering drawings used by assembly line employees at the truck factories. The 1967 through 1972 Chevrolet truck models are some of the most popular ever built. They offer great looks and reliable power. It's no wonder why they are such popular candidates for restoration. While chassis service and overhaul manuals are tremendously beneficial, why not give yourself additional reference material? Sometimes it just helps to have an exploded-view diagram of the various systems upon which you are working. That's where the assembly manual is ready to serve. Add it to your automotive library and be prepared to see the projects in a whole new way.

NOTE: It is important to know what these factory assembly manuals are...and what they are NOT! They are handy and helpful guides for figuring out "how all the puzzle pieces fit together". They are NOT shop, service, or repair manuals. They do NOT include step by step instructions for rebuilding or servicing parts. What are they? They are huge collections of engineering drawings which detail how the various systems and sub-assemblies are supposed to fit together. Because they were not issued to dealerships, like shop manuals, they are not organized in the same manner. Many do not even have indexes. Also, because they were prepared for assembly line workers, and not originally for the public, the pages can vary widely in quality. Some are darker, clearer and cleaner than others. These salvaged images reflect the best available material to use as a source for reproduction.

CHEVROLET / GMC TRUCK MODELS COVERED:

  • 1969 - 1971 Chevrolet Blazer
  • 1967 Chevrolet C10 Panel Truck
  • 1967 - 1972 Chevrolet C10 Pickup Truck
  • 1967 - 1972 Chevrolet C10 Suburban
  • 1967 Chevrolet C20 Panel Truck
  • 1967 - 1972 Chevrolet C20 Pickup Truck
  • 1967 - 1972 Chevrolet C20 Suburban
  • 1967 - 1972 Chevrolet C30 Pickup Truck
  • 1967 - 1972 Chevrolet K10 Pickup Truck
  • 1967 - 1972 Chevrolet K10 Suburban
  • 1967 Chevrolet K20 Panel Truck
  • 1967 - 1972 Chevrolet K20 Pickup Truck
  • 1967 - 1972 Chevrolet K20 Suburban
  • 1968 - 1972 Chevrolet K30 Pickup Truck
  • 1967 - 1971 GMC C15/C1500 Pickup Truck
  • 1967 - 1972 GMC C15/C1500 Suburban
  • 1967 - 1972 GMC C25/C2500 Pickup Truck
  • 1967 - 1972 GMC C25/C2500 Suburban
  • 1967 - 1972 GMC C35/C3500 Pickup Truck
  • 1970 - 1972 GMC Jimmy
  • 1967 - 1972 GMC K15/K1500 Pickup Truck
  • 1967 - 1972 GMC K15/K1500 Suburban
  • 1967 - 1972 GMC K25/K2500 Pickup Truck
  • 1967 - 1972 GMC K25/K2500 Suburban
  • 1968 - 1972 GMC K35/K3500 Pickup Truck

This manual is perfect for the restorer or anyone working on one of these vehicles. Illustrations show exploded views, along with part numbers, part number cross-referencing, torque, revisions and more.


Subject: Chevrolet, GMC Truck Factory Assembly Instruction Manual. 1967, 1968, 1969, 1970, 1971, 1972

Specifications
  • Publisher: Chevrolet Motor Division
  • Pages: 1064 - Hundreds of b&w illustrations
  • Binding: Paperback - 8.5 x 11 inches
  • Years: 1967 - 1972
Table of Contents
Table of Contents
  • General Information
  • Labels & Stickers
  • Vehicle ID Plate
  • Vehicle Protect-O-Plate
  • Lubrication
  • Cements & Sealers
  • Trim Heights
  • Body
  • Frame
  • Suspension
  • Brakes
  • Engines
  • Transmission
  • Fuel & Exhaust
  • Steering
  • Wheels & Tires
  • Sheet Metal - Radiator Grille
  • Electrical
  • Bumpers & Miscellaneous
Sample Page:

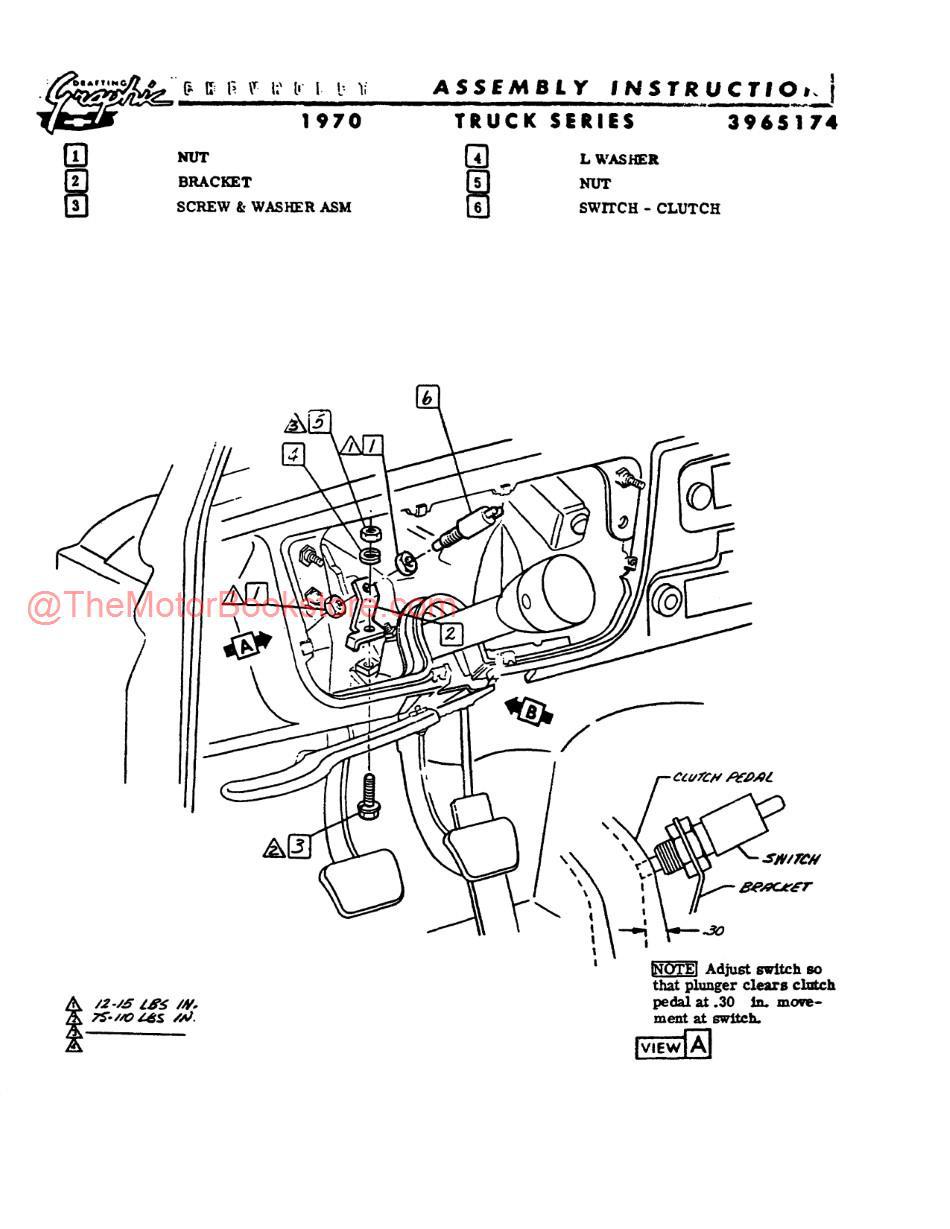

Below: 1967-1972 Chevrolet, GMC Truck Factory Assembly Manual Sample Page - Clutch Switch
1967-1972 Chevrolet, GMC Truck Factory Assembly Manual Sample Page - Clutch Switch
Questions & Answers about 1967-1972 Chevrolet, GMC Truck Factory Assembly Manual

Questions & Answers about 1967-1972 Chevrolet, GMC Truck Factory Assembly Manual


Does this manual give detailed measurement for installing the front clip,radiator support, bracing brackets etc.?
This assembly manual is packed with many exploded diagrams. It contains information regarding the suggested assembly sequence of front end sheet metal, sub assemblies, final line build ,etc. It will show the screws, clips, nuts, etc. including the torque specs. Many diagrams, such as trim placement, will be accompanied by detailed measurements, but the front end sheet metal section does NOT appear to have all the detailed measurements you have requested, and some places are marked with notes, such as, "Full range of gap tolerances do not apply to any one gap. Clearances to be held uniformly within the range of shimming or good assembly practices. Appearances dictate that gap clearances should be parallel" . Thanks.

Ask a question about 1967-1972 Chevrolet, GMC Truck Factory Assembly Manual.
Customer Reviews

REVIEWS

verified customer
excellent manual
Has everything I need to help restore my old 1969 GMC. Big help.
Was this rating helpful to you?   👍 Yes    👎 No
verified customer
1967 to 1972 Chevrolet C10 Assembly Manual
Be warned:
This manual is very incomplete and a poor copy of an original factory assembly manual.
The manual does not have an index to reference parts or procedures which makes it difficult to find a specific procedure or part.
With over a 1000 pages it is very inconvenient to locate what you are trying to reference.
For the price of these manuals it should have an index and be of a better quality of printing.
Part numbers are also not included for reference also.
It does have important illustrations but for what I paid, I was expecting a more thorough manual.
The GM Assembly manuals were published specifically for their assembly line employees. It's focus is on detailed diagrams/illustrations showing how parts go together. Although, GM did not publish the manual for auto restorers, many restoration specialists love the assembly details to aid their projects. We offer a 30 day money back guarantee. Please contact our friendly customer service staff to arrange a return. Thank you for your business and we hope your review of this product will help other mechanics make the right decision.
